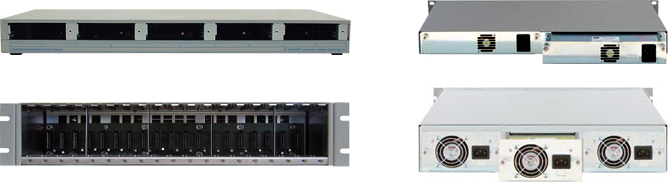

The 1U (1.75 inch) high iConverter 5-Module Chassis has redundant power supplies and can be mounted in a 19-inch or 23-inch rack.
The 2U (3.5 inch) high iConverter 19-Module Chassis has triple-redundant power supplies and can be mounted in a 19-inch or 23-inch rack.
It is designed for Enterprise Local Area Network (LAN) and Metropolitan Area Network (MAN) applications where fault tolerance and a high-density rack footprint are essential.
Product Name | iConverter 5M Chasis | iConverter 19M Chasis | |||||||
---|---|---|---|---|---|---|---|---|---|
Model Number | 8220 | 8226 | 8225 | 8200 | 8201 | 8206 | 8205 | 8207 | |
Slot | 5 | 19 | |||||||
Power | Slot | 2 | 3 | ||||||
Voltage/ Current | AC 100-240V 50/60Hz 0.5A |
DC 24V (18~36V) 1.4A |
DC 24V (18~36V) 0.7A |
AC 100-240V 50/60Hz 2.0A |
AC 100-240V 50/60Hz 2.5A |
DC 24V (18~60V) 6.0A |
DC 48V (36~60V) 3.0A |
DC 48V (36~60V) 5.0A |
|
Power Capacity | 60W | 120W | 66W | 66W | 120W | ||||
Dimensions(H×W×D) | 435.6 x 228.6 x 44.6 [mm] | 435.6 x 355.6 x 88.9 [mm] | |||||||
Weight | 1 Power Supply | 3.4 [Kg] | 7.26 [Kg] | ||||||
2 Power Supplies | 4.08 [Kg] | 8.39 [Kg] | |||||||
3 Power Supplies | - | 9.53 [Kg] | |||||||
Operating Requirements | 0~50℃/5~95%(non-condensing) | ||||||||
Wide Temperature | -40~60℃ | ||||||||
Network Function | Power Loss Trap(option) | ||||||||
Compliance | UL, CE, FCC Class A | UL, CE, FCC Class A, NEBS Level 3 |
