iConverter 1M-Chassis, 2M-Chassis

iConverter 1M-Chassis, 2M-Chassis

iConverter 1M-Chassis, 2M-Chassis

The 1 inch high 1-Module iConverter Power Chassis supports a single iConverter module and is powered by an external AC power adapter or external DC power source (20 to 60VDC). The 1-Module Power Chassis is designed for network edge, Customer Premises or Central Office deployments where compact size, low cost and flexible upgrades are important.
The iConverter 2-Module Power Chassis is a compact, versatile chassis featuring a single internal universal AC or 18-60VDC power supply. The chassis provides housing for all iConverter media converters and switch modules.

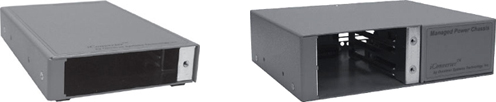

Appearance

Spec

Product Name iConverter 1M Chasis iConverter 2M Chasis
Model Number 8240 8249 8230 8231 8235 8236
Slot 1 2
Power AC Adapter
100-240V 50/60Hz
0.19A		 20-60VDC
0.6A		 100-240V
AC 50/60Hz
0.5A		 100-240V
AC 50/60Hz
0.5A		 -48VDC
(18～60V)
1.0A		 -48VDC
(18～60V)
2.0A
Backplane Power - 1.5A 2.5A 1.5A 2.5A
Dimensions（H×W×D） 96.5 x 139.7 x 25.4
[mm]		 96.5 x 152.4 x 25.4
[mm]		 170.2 x 140.0 x 47.5 [mm]
Weight 0.68 [Kg] 1.13 [Kg]
Operating Requirements 0～50℃／5～95％（non-condensing）
Wide Temperature -40～60℃
Network Function Power Loss Trap（option）
Compliance UL, CE, FCC Class A, NEBS Level 3
