MXK 319, 819, 823 Chassis

MXK 319, 819, 823 Chassis

GPON,Gigabit Ethernet Platform MXK 319, 819, 823 Chassis

The MXK family includes three fully-integrated form factors: 319 (19" rack x 3RU, with 7 slots for line cards), 819 (19" rack x 8RU, with 14 slots for line cards), and 823 (23" rack x 8RU, with 18 slots for line cards). The chassis support both front and rear power options and are equipped with a cable management tray, easy fan access, and redundant power feeds.

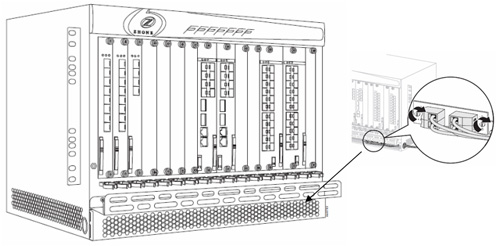

Appearance

Spec

Product Name MXK-319 MXK-819 MXK-823
Model Number MXK-CHASSIS-319 MXK-CHASSIS-819 MXK-CHASSIS-823
Slot Total Slot 7 14 18
Uplink 2 2 2
Power -48VDC x 2 -48VDC x 2
Maximum Power Consumption 700W 1,200W
Maximum Power Current 16A 28A
Dimensions(H×W×D) 133(3U) x 438 x 283 [mm] 355(8U) x 438 x 283 [mm] 355(8U) x 438 x 283 [mm]
Weight 14.5 [Kg](when cards are inserted)
Temperature -40℃~65℃ (-40℃~85℃) non-condensing
Humidity 5%~95% (under 95%)non-condensing
