MX-16１

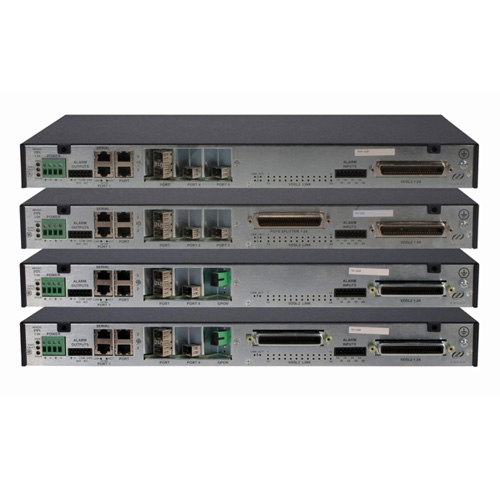

MX - 160/260 is a DSLAM that supports VDSL 2 (30A profile).
It has a built-in splitter, 24 port DSL line and FE / GE multi uplink port (Fiber, RJ45) , providing end-to-end packet-based data communication service. In addition, the DSL port also supports ADSL 2+, and it can also serve as ADSL 2+ instead of VDSL on long distance lines.
The MX - 260 has a GPON port (1 port) as the uplink port and can also be used as an ONT (optical network terminal) of the GPU service MDU (for multi-family residences).
It has remote management functions such as SNMP, CLI, WEB management and a variety of network functions, and also supports advanced network services such as triple play.
It has a built-in splitter, 24 port DSL line and FE / GE multi uplink port (Fiber, RJ45) , providing end-to-end packet-based data communication service. In addition, the DSL port also supports ADSL 2+, and it can also serve as ADSL 2+ instead of VDSL on long distance lines.
The MX - 260 has a GPON port (1 port) as the uplink port and can also be used as an ONT (optical network terminal) of the GPU service MDU (for multi-family residences).
It has remote management functions such as SNMP, CLI, WEB management and a variety of network functions, and also supports advanced network services such as triple play.
| VDSL | 100Mbps， 24Port（Telco50pin）、24 Port Splitter（Telco50pin） |
| LAN Interface | 100/1000Mbps， RJ45×2Port，SFP×4Port（SFP Sold Separately） |
| Operating Requirements | Temperature： -40～65℃，Humidity：0～85％（Non-Condensing），AC Adapter（0～50℃） |
| Physical Specification | Dimensions： 43.7（H） ×439.9（W） ×230.2（D） [mm]，Weight： 4.53 [Kg]，Power： -48VDC （AC Adapter Option) |
| Management and Network | WEB Management／CLI（Telnet・Serial）／SNMP，VLAN，QoS，Bridge，Router |
| Compliance | Safety: CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950-1，EMC Emissions: FCC Part 15 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A，EMC Immunity: EN 300 386 v1.4.1，Environmental: ETS 300 019-2-x, ISTA Transportation and Handling |
VDSL Aggregate Type 100M 24 Lines ADSL Mode Built-In Splitter
