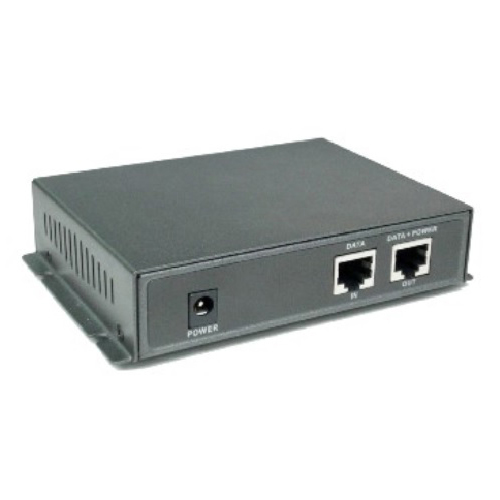

PI300
PI 300 is a high power compatible PoE injector product. Using a PoE connection, up to 50 W of poer is supplied to PoE compatible terminals.
It connects with the PoE repeater product PR100, via LAN cable extension (PoE connection) and high power supply (PR100: 18W) is possible.
Moreover, it connects with the PoE splitter product PS 300, making network construction by PoE easy, such as the connection of PoE incompatible terminals.
It connects with the PoE repeater product PR100, via LAN cable extension (PoE connection) and high power supply (PR100: 18W) is possible.
Moreover, it connects with the PoE splitter product PS 300, making network construction by PoE easy, such as the connection of PoE incompatible terminals.
| Speed | 10/100Mbps |
| PoE Port | RJ45，10/100Base-T，50W PoE Port ｘ 1 |
| LAN Port | 10/100Base-TX： 1 Port |
| Power Supply | AC Adapter 100-240VAC, 47-63Hz （Main Unit 24VDC Input） |
| Output | OUTPUT 56VDC |
| Dimensions (W×H×D） | 120（W） ×28（H） ×90（D） [mm] |
LAN Cable PoE Terminal：1 Port Supply：1 Port High-Power Max 50W Max 100Mbps
