NetMic

  • NetMic_1

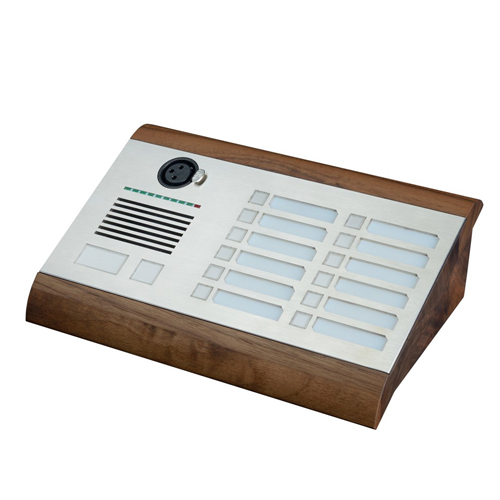

The 2N® NetMic hardware console, with microphone, enables you to make live announcements or broadcast pre-prepared files to different zones. It’s a hardware alternative to the 2N® NetSpeaker Console software application that is primarily intended for the public sector, such as schools, courts, railway stations, airports, medical facilities, amusement parks, outdoor swimming pools and sports facilities.
Power supply >12 to 32V, max. 1A
>PoE in accordance with 802.3af standard

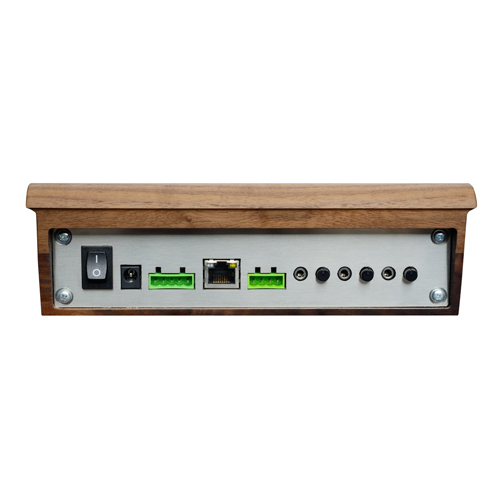

Interface >Logical inputs:
Two, galvanically separated, sensitive to contact or charge from 5 to 48V
>Relay output:
1, galvanically separated, NO and NC contact, max. load 48V, 1A
>Earphone output:
Jack 3.5mm, stereo, power output 2 x 30mW, min. impedance 16Ohm, DR 101dB, THD+N -85dB
>Main microphone input:
Symmetrical, XLR, integrated phantom current of 24V, DR 88dB, THD+N -82dB
>Microphone input for headset:
Jack 3.5mm, integrated current for electret microphones, DR 84dB, THD+N -78dB
>Line input:
Jack 3.5mm, symmetrical mono or non-symmetrical stereo, DR 93dB, THD+N -82dB
Audio stream >PCM, 44 100KHz, 16bit, Stereo (1650 kbps)
>Speakers
2 built-in, stereo, power output 2 x 1W
Dimensions >209 x 65 x 143mm
Operating temperature >0 - 40°C
Buttons and captions >Dimensions of captions
39.6mm width x 9mm height
>Large button (speak)
25.5mm x 12mm
>Small button (listen)
12mm x 12mm
Audio broadcasts to different zones Listening in on audio being played in different zones Option of connecting anywhere in the network
