Net Streamer

  • OLYMPUS DIGITAL CAMERA

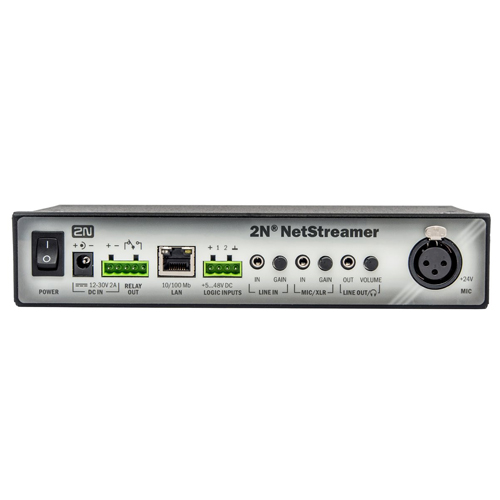

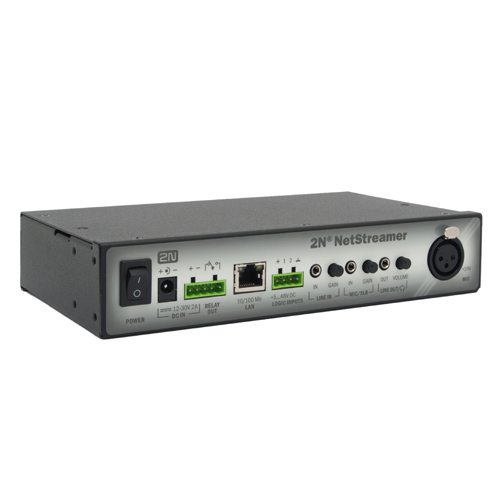

The 2N® NetStreamer is a clever IP device that can convert traditional (e.g. analogue) audio signal sources to IP form. Simply connect it to an FM radio, CD player or microphone and the 2N® NetStreamer encoder then distributes audio to various destinations over an IP network using the 2N® NetSpeaker Server software application. This audio converter can particularly be used in various public spaces, such as hotels, restaurants and wellness or fitness centres.
Interfaces >Logic inputs:
2, galvanically isolated, sensitive to contact or current from 5 to 48V
>Relay output:
1, galvanically isolated, NO and NC contact, load of max. 48V, 1A
>Headphone output:
3.5mm jack, stereo, output of 2 x 30mW, min. impedance of 16Ohm, DR 101dB, THD+N -85dB
>Main microphone input:
symmetrical, XLR, integrated phantom power supply 24V, DR 88dB, THD+N -82dB
>Microphone input for headset:
3.5mm jack, integrated power supply for electret microphones, DR 84dB, THD+N -78dB
>Line input:
3.5mm jack, symmetrical mono or asymmetrical stereo, DR 93dB, THD+N -82dB
Power supply >12 to 32V, max. 1A
>PoE in accordance with 802.3af standard
Audio stream >PCM, 44 100KHz,16bit, Stereo (1650 kbps)
Dimensions >220 x 45 x 140mm
Operating temperature >0 - 40°C
Operating humidity >10-95% (non-condensing)
Ability to use more than one audio signal source Central management Easy and comfortable operation
