IP Paging

SIP Speaker

  • SIP Speaker_1

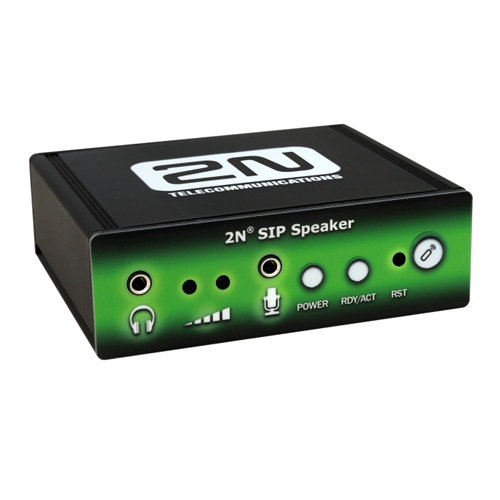

The 2N® SIP Speaker is an IP paging device with many useful functions. It can be used at the workplace, in schools, offices and other public spaces. You can use it with a loudspeaker as a simple PA system or with a microphone as a two-way intercom. The link between IP technology and an SIP protocol enables announcements to be sent to all the devices in the system, to select individual zones or call a specific device. With an external microphone and button, an end station can call up to three pre-selected numbers. It is then possible to control one external switch from these workplaces with any function based on the needs of the given operation.
Dimensions and weight >Dimensions
105 x 34 x 86 mm
>Dimensions (with L-profiles)
130 x 34 x 86 mm
300 g
Amplifier parameters >Output of power amplifier
4 terminals on rear panel, STEREO/MONO with auto detection
>Speaker impedance
>Amplifier performance
Up to 2x10W depending on connection
>Frequency range
20Hz – 20kHz (+/- 0.5dB)
>Harmonic distortion
0.05% @ 1kHz
>Signal to noise ratio
Power >External power supply
12V DC / 1.8A
>LAN power supply
PoE IEEE 802.3af

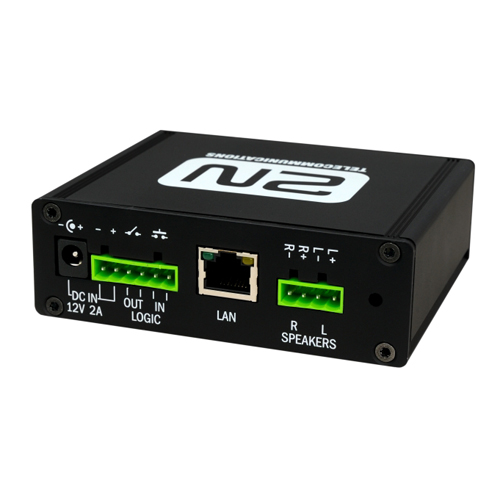

Interface >Status signal
3x RG LED on front panel
>Local control
3x Button on front panel
>Remote control
1x Infrared detector on front panel
>LAN connection
RJ-45 connector on rear panel
10/100BASE-TX with Auto-MDIX function
>Earphone/line out
1x STEREO 3.5mm jack on front panel
>Microphone/line out
1x STEREO 3.5mm jack on front panel
Simple integration Powerful built-in amplifier Input for external microphone
