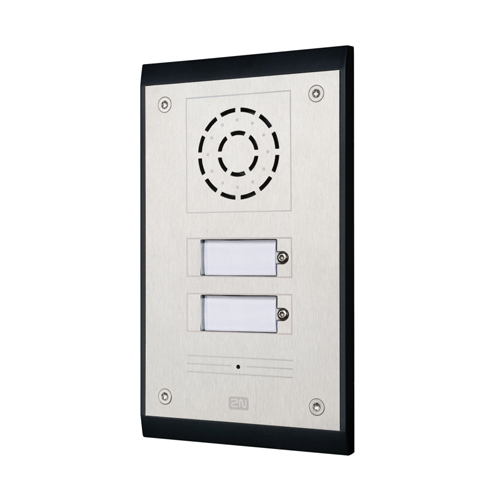

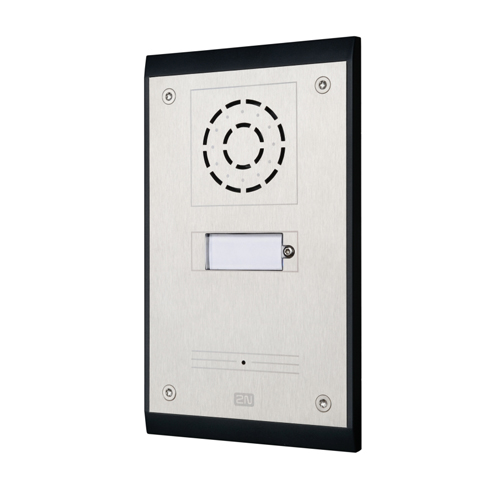

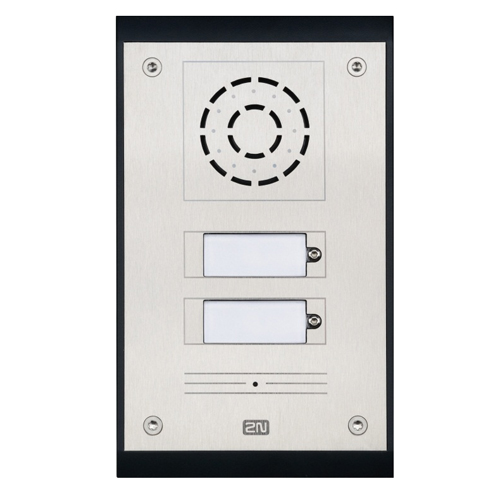

Helios IP Uni
At first sight, the 2N® Helios IP Uni is a modest, yet very interesting door intercom in terms of possibilities, for simple installation. It offers the advantages of an IP environment and SIP telephone, while its simple installation allows the use of your existing LAN network. Control is intuitive, and high quality construction in a practical design ensures the device is sufficiently durable and resistant to external influences.
>Simple installation
>Universal switch output
>Use of existing LAN/WAN network
>Web interface for configuration
>Central administration tool
>Simple installation
>Universal switch output
>Use of existing LAN/WAN network
>Web interface for configuration
>Central administration tool
Simple installation Universal switch output Use of existing LAN/WAN network Web interface for configuration IP54
Connector – RJ45
Transmission speed 10/100 BASE-T
・Active output
8V – 12V DC/500mA
・Passive relay output
Maximum voltage 30 V DC
Maximum current 1 A DC
48 V / 380 mA DC
or
・Adapter
230 V ± 10%, 50/60 Hz / 12V DC
DC power supply 12 V / 2A DC
・Number of voice channels: 2
・Audio codices G.711 PCM, 64 kbps
193 x 115 x 39 mm (h×w×d)
・Weight
500 g
・Operating temperature
–40 to +55 ºC
・Cover level
IP 54
