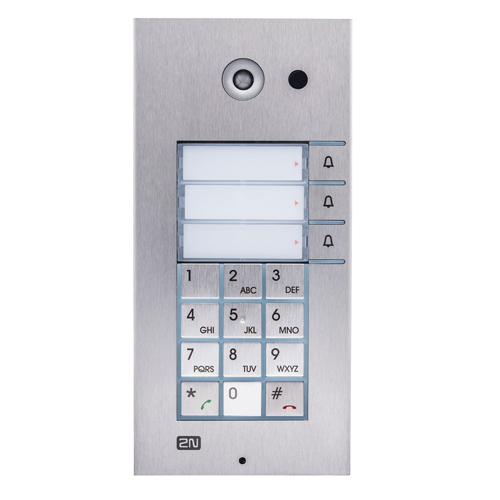

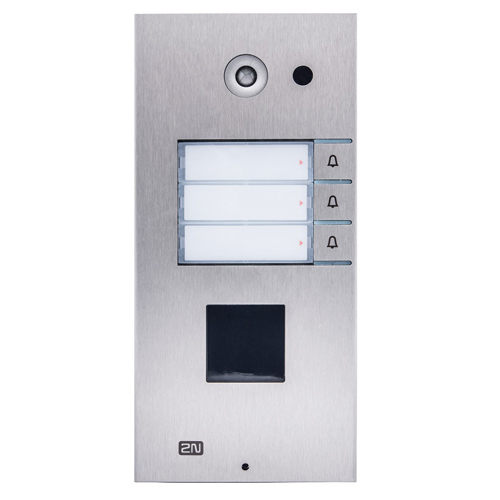

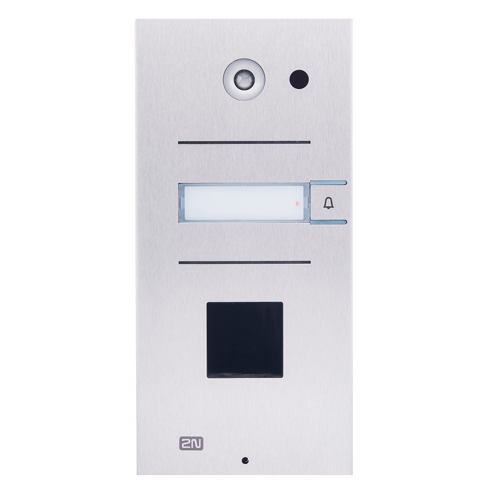

Helios IP Vario
The 2N® Helios IP Vario is a door intercom that perfectly combines the most advanced technology with a unique design. It is a variable communication system supporting both voice and video transmission. And all that in an IP environment using the SIP protocol.
>One Box solution
>Display, card reader, keypad, camera
>Full duplex audio
>Video
>Remote administration
>Indoor/outdoor installation
>Cisco certificate
>One Box solution
>Display, card reader, keypad, camera
>Full duplex audio
>Video
>Remote administration
>Indoor/outdoor installation
>Cisco certificate
Display card reader keypad camera Full duplex audio Video
Connector Screw plug
Ethernet speed 10/100 BASE-T
・Reley outputs
Maximal voltage 30 V DC
Maximal current 1 A DC
・Active output
10V – 14V DC/700mA
Number of voice channels: 2
Audio Codecs :G.711 PCM, 64 kbps,G.729
Video Codecs: H.264, 64 – 2048 kbit/s,H.263,H.263+
Weight: max. 500 g
Operating temperatures:from –20 to +55 ºC
Cover level: IP 53
