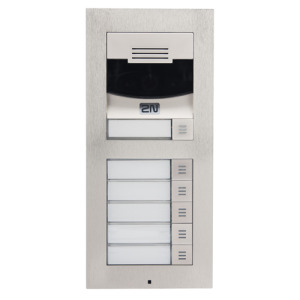

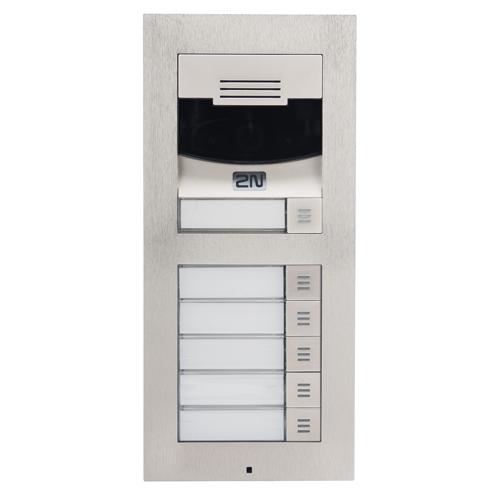

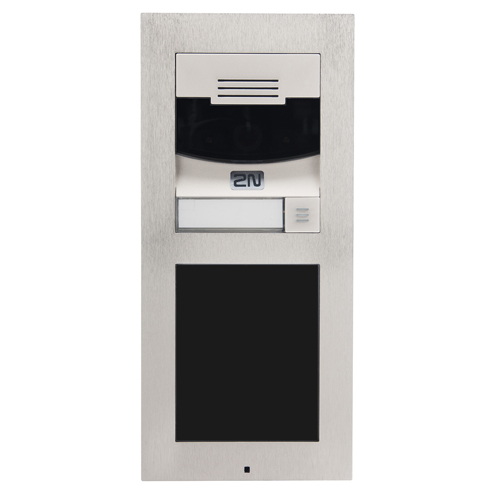

Helios IP Verso
The 2N® Helios IP Verso is a security intercom that, thanks to its modularity, can be used everywhere you need to choose a specific function and purpose of use. For example, you can choose an HD camera with an infrared light and night vision or a smart card reader. It can not only be easily integrated into your current camera and monitoring system, but thanks to programmable scripts, the whole system can be used as a security component to protect the building.
>HD camera with infrared light and night vision
>Integration with third-party CCTV systems with ONVIF support
>13.56 MHz smart card reader with NFC support
>Programmable scripts for actions and reactions
>NextGen html5 web configurator
>Connectable external IP camera
>Attendance system
>Video and audio for mobile telephones and tablets
>HD camera with infrared light and night vision
>Integration with third-party CCTV systems with ONVIF support
>13.56 MHz smart card reader with NFC support
>Programmable scripts for actions and reactions
>NextGen html5 web configurator
>Connectable external IP camera
>Attendance system
>Video and audio for mobile telephones and tablets
PoE IR Night Vision ONVIF support 10/100BASE-T RJ-45 IP54
・PoE ：PoE 802.3af (Class 0 - 12.95W)
・LAN ：10/100BASE-TX with Auto-MDIX, RJ-45
・Relay outputs：NC/NO contacts, max 30V/1A AC/DC
・Active output ：8V – 12V DC/400mA
Resolution – video call ：640 x 480 px
View angle ：120° (H), 90° (V), 145° (D)
IR Night Vision ：yes
Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, SmartMX, Ultralight, Ultralight C, SLE44R35, my-d move (SLE66Rxx), PayPass, Legic Advant Calypso, CEPAS, Moneo, PicoPass, HID iCLASS
-40°C – 60°C
Storage temperature range
-40°C – 70°C
Relative humidity
10% - 95% (not condensing)
Protection level
IP 54
Wall-mounted 2 modules ：107x234x28 mm
Wall-mounted 3 modules ：107x361x28 mm
In-wall 1 module ：130x153x5 mm
In-wall 2 modules ：130x257x5 mm
In-wall 3 modules ：130x361x5 mm
