Net Speaker

  • Net Speaker_1

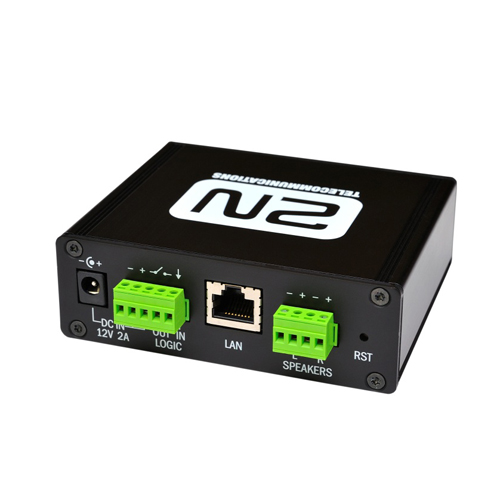

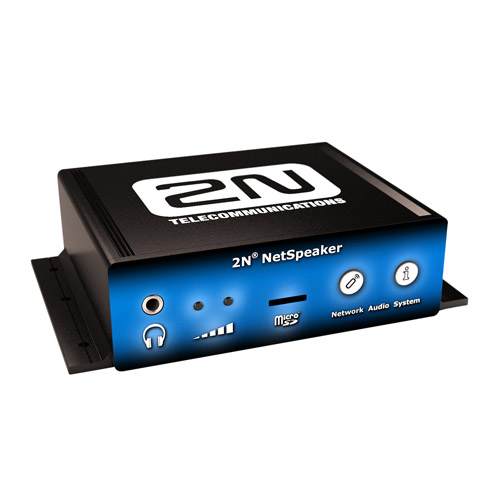

The 2N® NetSpeaker is an IP audio system that enables acoustic communication or other audio stream to be played from a given PC in a LAN/WAN network. For audio transmission over IP all you need to do is connect a standard speaker or amplifier to the 2N® NetSpeaker, thus creating a virtual central broadcasting system. This allows for any audio to be played with the options to create separate zones with different communication content. A use for this solution is found, for instance, in schools, shopping centres, office buildings, at train stations, in athletic, cultural or health facilities and in many other public spaces.
Dimensions & Weight >Dimensions
105 x 34 x 86 mm
>Dimensions (incl. L-profiles)
130 x 34 x 86 mm
>Weight
300 g
Amplifier parameters >Power amplifier output
4 terminals on back panel
Stereo/Mono with auto detection
>Loudspeaker impedance
4-16Ω
>Frequency range
20Hz – 20kHz (+/- 0.5dB)
>Harmonic distortion
0,05% @ 1kHz
>Signal-to-noise ratio
91dB
>Headphones/Line out
1x Stereo 3,5mm jack on front panel
Digital Interface >Digital output
1x relay output
24V 1A AC/DC
galvanically isolated
>Digital input
1x digital input
5 to 24V DC
galvanically non-isolated
Audio parameters >Sound compression
MPEG-1 Audio Layer II (MP2)
>Bandwidth
32-320kbps
>RTP multicast
G.711a-law / u-law
Linear PCM 16bit Stereo / Mono
Power supply >External power supply
12V DC / 2A
>LAN power supply
PoE IEEE 802.3af
Effective dissemination of advertisements Option of creating separate zones Central management
