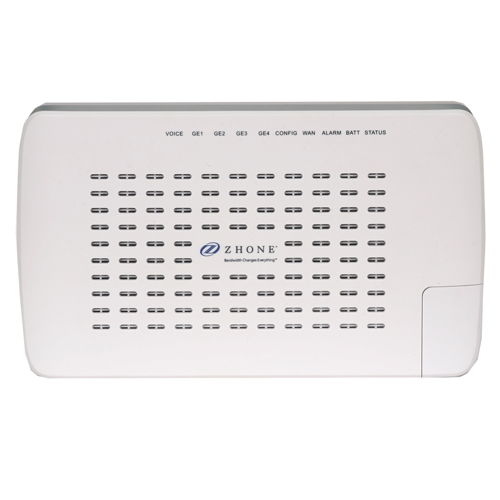

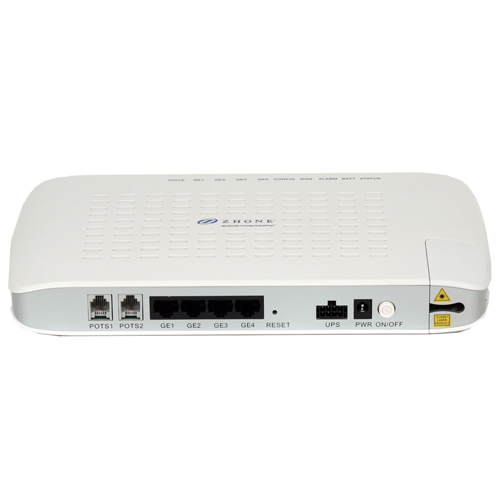

GPON ONT（ONU） zNID 242x
GPON ONT (ONU) zNID 242x series is an ONT for indoor installation.
In addition to the LAN port, it also has a POTS port, and it is a multi-function ONT corresponding to triple play, it has a reasonably cost compared to the outdoor installation type ONT.
WEB management is easy to operate visually and control functions (OMCI) from OLT are installed and correspond to both functions of a router and bridge. It also supports network functions such as VLAN and QoS, voice support such as SIP / MGCP, and video function such as multicast IGNP.
In addition to the LAN port, it also has a POTS port, and it is a multi-function ONT corresponding to triple play, it has a reasonably cost compared to the outdoor installation type ONT.
WEB management is easy to operate visually and control functions (OMCI) from OLT are installed and correspond to both functions of a router and bridge. It also supports network functions such as VLAN and QoS, voice support such as SIP / MGCP, and video function such as multicast IGNP.
| GPON | SC Connector： 1Port（WAN） |
| LAN Interface | 10/100/1000Base-T（Auto MDI/MDIX） RJ45： 4Port（LAN） |
| Operating Requirements | Temperature： 0～40℃ Humidity：5～90％（Non-Condensing） |
| Physical Specifications | Dimensions： 38（H） x 254（W） x 152（D） [mm]，Weight： 0.45～0.54 [Kg]，Power：AC Adapter（100-240V 50/60Hz） |
| Management & Network | SNMP, CLI, WEB Management, OMCI（G.988），G.984.x （GPON）, VLAN, QoS, IGNP v2/v3, IP Routing, Firewall, DHCP |
GPON ONT Indoor Type Gigabit POTS OCMI
