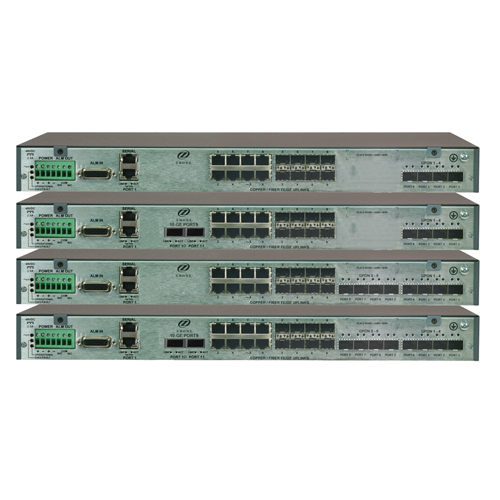

MXK 194／198 1U OLT
MXK-194/198 is 1U size compact OLT which provides GPON optical network.
It has a multi-uplink FE / GE (fiber, RJ45)(8Ports), GPON port (MXK-194)(4Ports), and (MXK-198)(8 Ports) . In addition, the MXK-194 & 198-10GE has a 10 GB ultra high-speed uplink port (2 ports) and supports connection to the core network.
It has remote management functions such as SNMP, CLI, WEB management and various network functions, and supports advanced GPON network service.
In addition, Zhone will line up various ONTs (optical termination equipment), and it will correspond not only to data, but also various service applications including voice and video.
It has a multi-uplink FE / GE (fiber, RJ45)(8Ports), GPON port (MXK-194)(4Ports), and (MXK-198)(8 Ports) . In addition, the MXK-194 & 198-10GE has a 10 GB ultra high-speed uplink port (2 ports) and supports connection to the core network.
It has remote management functions such as SNMP, CLI, WEB management and various network functions, and supports advanced GPON network service.
In addition, Zhone will line up various ONTs (optical termination equipment), and it will correspond not only to data, but also various service applications including voice and video.
| GPON | "MXK-194： 4Port（SFPSlot） MXK-198： 8Port |
| LAN Interface | RJ45（10/100/1000M）×8Port（Copper），SFP（1000M）×8Port（Fiber），10GE（※ Only 10GEModel）： 2Port |
| Operating Requirements | Temperature： -40～65℃，Humidity：0～85％（Non-Condensing），AC Adapter（0～50℃） |
| Physical Specification | Dimensions： 43.7（H） x 439.7（W） x 230.2（D） [mm]，Weight： 3.6 [Kg]，Power： -48VDC （AC Adapter Option） |
| Management & Network | WEB Management／CLI（Telnet・Serial）／SNMP／ZMS，DHCP Server/Relay，Bridge（802.1D），Router，VLAN， QoS，LACP 802.3ad Support，IGMPv2 |
| Compliance | Safety: CSA 22.2No.60950-1, EN60950-1, IEC90950-1, UL60950-1，EMC: FCC Part15 ClassA, EN55022 ClassA, ICES-003 ClassA, EN 300 386 v1.4.1，Environmental: ETS 300 019-2-x, ISTA Transportation and Handling |
GPON OLT Aggregate Type 2.5G / 1.25G 4/8Port 256/512 OCMI
