G.SHDSL.bis EFM Modem ETHX-3400

G.SHDSL.bis EFM Modem ETHX-3400

SHDSL Bonded Ethernet Access Device

The 4 and 8 port EtherXtend SHDSL Ethernet Access Devices (ETHX-3444 and ETHX-3484, respectively) have been designed to deliver bonded high-speed Ethernet First Mile (EFM) services over SHDSL. The ETHX-34xx combines SHDSL bonding with advanced performance and management features to ensure high reliability, low latency, and maximum throughput.

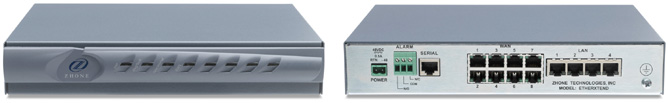

Appearance

Spec

Model Number ETHX-3444 ETHX-3484
Line Rate 1 line(2W) 5.7 [Mbps]
Bonding 22.8 [Mbps] (EFM/N2N) 45 [Mbps] (EFM/N2N)
Line Code 16/32-TC-PAM
Interfaces DSL RJ11: 4 port RJ11: 8 port
LAN RJ45: 4 port
Console RJ45(RS232)Serial port
Power -48VDC (Optional AC Adapter)
Operating Requirements -40~65℃/5~95%(non-condensing)
(0~40℃ AC Adapter)
Dimensions(H×W×D) 44.5(H) x 254.0(W) x 191.0(D)[mm]
Weight 1.52 [Kg]
Management WEB Management/CLI(Telnet・Serial)/SNMP
Network Function IEEE 802.1p Priority and QoS
IEEE 802.1Q VLAN with Q-in-Q
Compliance NEBS: GR-63-CORE, GR-1089-CORE
EMC: FCC Part 15, CSA/C108.8, EN55022, CE Marking
Safety: UL1950, CSA C22.2 No. 950, EN 60950, CE Marking
