iConverter 1 Module Redundant Power Chassis

The iConverter 1-Module Redundant Power Chassis is ideal for mission-critical Customer Premises (CP) Ethernet services, and in applications where the monitoring of external events is required.
The chassis supports multiple power sources, configurable 10/100 Ethernet ports and a wide variety of alarm options.
Power source options feature load-sharing combinations of Power-over-Ethernet (PoE), 9-24VDC and 24-60VDC. The PoE option is designed for applications where the converter chassis must be physically located where power is unavailable or is costly to install. Power is provided to one of the chassis' optional 10/100 network ports from a Power Source Equipment (PoE/PSE) such as a switch or a Mid-Span power injecting device.

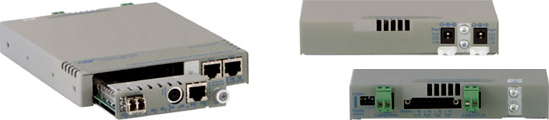

Appearance

Spec

Product Name iConverter Redundant Chassis
Model Number 8245
Slot 1
UTP port RJ45: 2 port
Power AC Adapter 100-240VAC 50/60Hz 0.2A
Low Voltage DC Power Connector 9-24VDC 1.5A
Low Voltage DC Power 9-24VDC 1.5A
High Voltage DC Power 48VDC (24-60V) 0.3A
PoE RJ45 PoE
Dimensions(H×W×D) 137.2 x 172.7 x 25.4 [mm]
Weight 680 [g]
Operating Requirements 0~50℃/5~95%(non-condensing)
Wide Temperature -40~60℃
Network Function
Compliance UL, CE, FCC, AS/NZS 3548, & VCCI Class A
